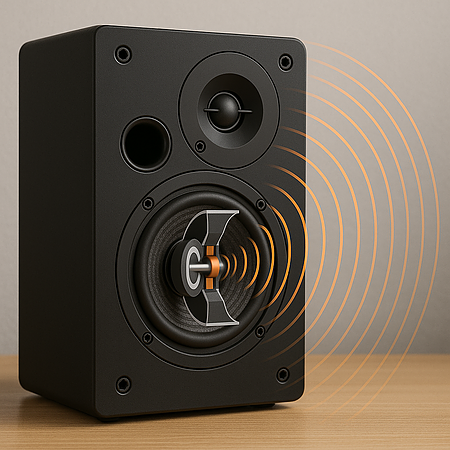

How Do Loudspeakers Work
1. The Electrical Signal Arrives
Everything starts with an audio source—like your phone, a computer, or an amplifier. That device sends an electrical signal to the loudspeaker, carrying the information that will become sound.
2. The Voice Coil Gets Energized
Inside the speaker, there’s a small coil of wire called the voice coil. When the electrical signal flows through it, the coil turns into an electromagnet. That means it can create a magnetic field when current passes through.
3. Voice Coil Moves Back and Forth
The voice coil sits inside the field of a permanent magnet. Because electromagnets can switch polarity (positive and negative) as the current changes, the voice coil starts moving back and forth—pushed and pulled by the magnet’s field.
4. The Speaker Cone Moves Air
The voice coil is attached to a cone, which is the part of the speaker you can usually see moving. As the coil moves, it pulls and pushes the cone at the same time. This movement is what creates vibrations in the air.
5. Vibrations Become Sound Waves
These vibrations travel through the air as waves. When they reach your ears, your brain processes them as sound. The speed and size of the vibrations determine whether you hear deep bass, crisp highs, or something in between.
Here are the different parts of a speaker and what role they play in producing sound:
The Cabinet
This is the outer box that holds everything together. It’s usually made of wood or plastic and is designed to reduce unwanted vibrations while letting sound waves move efficiently. Some cabinets have a reflex port (a hole or slot) that helps enhance bass response.
Drivers
Drivers are the parts of the speaker that actually produce sound. Each driver handles a different range of frequencies:
- Woofers produce low frequencies (bass).
- Midrange drivers handle the middle frequencies, like voices and instruments.

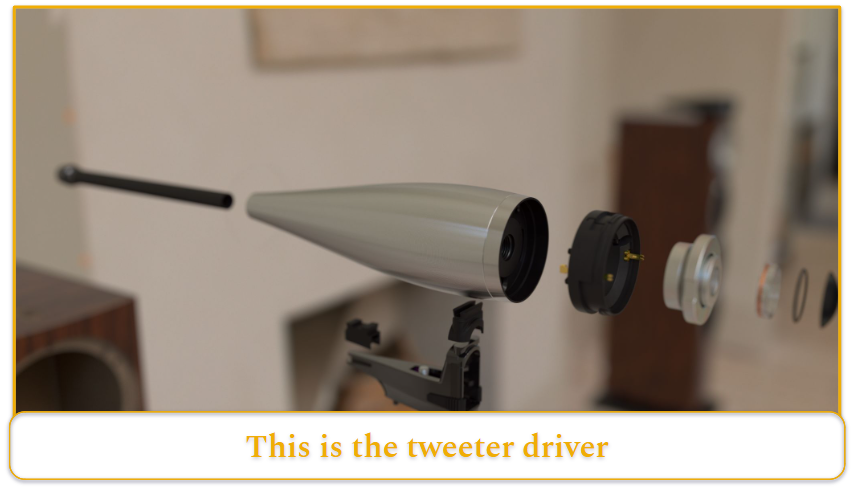

- Tweeters take care of the high frequencies (treble).
Some speakers also have subwoofers for extra-deep bass.

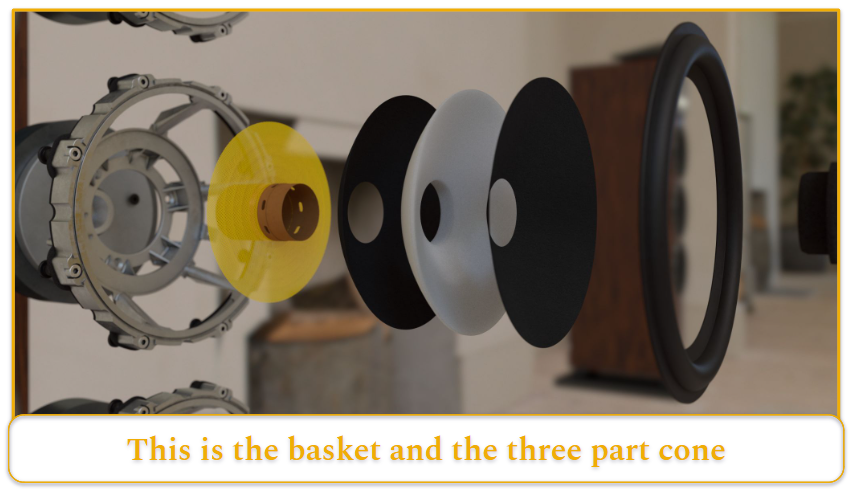

Cone (Diaphragm)
The cone is the moving part of a driver that pushes and pulls air to create sound waves. It’s usually made of paper, plastic, or metal.
Voice Coil
A tightly wound coil of wire that sits behind the cone. When an electrical signal flows through it, it creates a magnetic field, which makes the coil move back and forth. This movement is what drives the cone and produces sound.
Magnet
The magnet sits behind the voice coil and interacts with it to control its movement. Most magnets in speakers are made of neodymium or ferrite.
Spider (Suspension)
This flexible component holds the voice coil in place while allowing it to move freely. It helps keep everything aligned so the speaker works properly.
Dust Cap
This small cover sits in the center of the cone, preventing dust and debris from getting into the voice coil.
Crossover
A built-in electronic filter that splits incoming audio signals and sends the right frequencies to the right drivers. This ensures that each driver only handles the sounds it’s designed for.
Basket
The rigid frame that supports the cone and keeps everything in the correct position inside the cabinet.

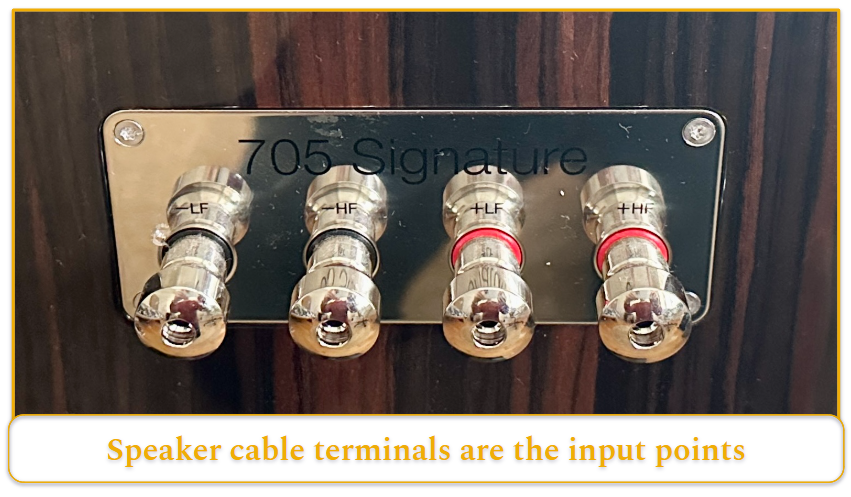

Speaker Terminals (Connections)
These are the input points where the speaker receives the electrical signal from an amplifier via speaker cables.
What is the Difference Between a Tweeter and a Woofer?
A tweeter is the smallest part of the speaker that produces high-pitched sounds, like cymbals or birds chirping. Its small size allows it to move very fast, which is needed to create those high-frequency sounds.
A woofer is the larger part of the speaker that produces deep, low sounds, like bass in music or a rumbling thunder. Because it’s bigger, it moves more slowly, which helps create those lower, deeper tones.
Why Are Speakers Mounted in Boxes?
Speakers are placed in boxes (called cabinets or enclosures) to improve sound quality. When the speaker cone moves, it pushes air inside the cabinet, which helps amplify the sound, especially for lower frequencies. The cabinet also reduces unwanted vibrations and enhances overall audio performance.
Why Do Some Speakers Have Holes?
Some speakers have holes, known as bass reflex ports, to improve bass performance. These ports direct the sound waves coming from the back of the speaker cone to reinforce the low-end frequencies. A well-designed port allows a small speaker to produce deep bass that would normally require a larger speaker.
FAQs
How does music get to the speaker?
Can a speaker work without magnets?
What determines how powerful a speaker is?
A speaker’s loudness depends on:
- The amplifier’s power – A stronger amplifier can drive a speaker louder.
- Speaker impedance – Lower impedance speakers draw more power from an amplifier.
- Speaker sensitivity – A higher sensitivity rating means the speaker can produce more volume with less power.
How can I make my speakers sound better?
Speaker placement makes a big difference.
- Keep a proper distance: Your listening position should be farther from the speakers than the speakers are from each other.
- Angle them: Most speakers sound best when they’re aimed toward the listening position.
- Consider reflex ports: If your speaker has a rear bass reflex port, the distance from the wall can affect bass response. Experiment with placement for the best sound.
